Convex Radius .007-.500
EM15 (.007"-.375") and EM19 (.007"-.500") convex fillet radii inserts, in fractional and metric sizes, offer integral shank or shell mill bodies with positive geometry for high-speed cutting. Indexable end mill and shell mill cutter bodies feature a unique pocket design ensuring minimal runout and excellent surface finishes.
Convex Inserts

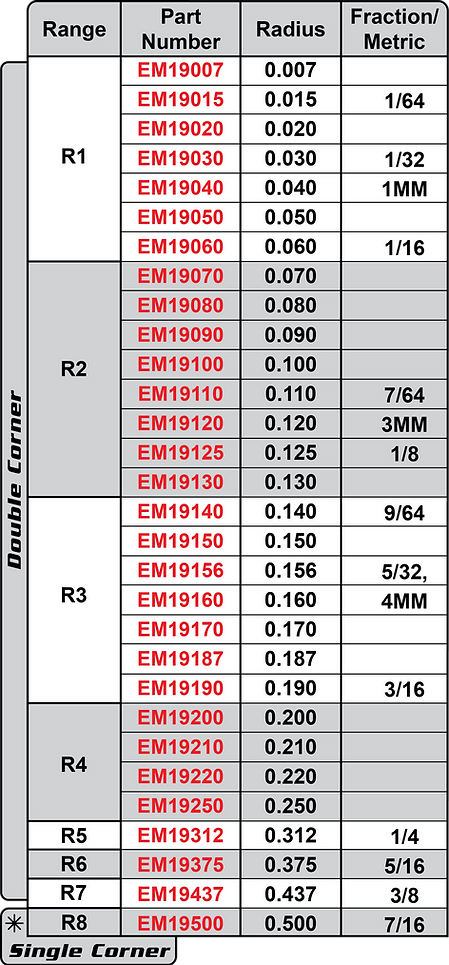

Step 1. To build your insert, choose a part number in red from either the EM15 or EM19 columns below.
EM15
EM19
Know what size you need?
Get your part numbers in just
a few clicks.
Start Here
Step 2. Choose a grade in red below. The complete part number combines the first selection from the section above with your grade selection below.
Material Types and Substrate Information
BE Convex Fillet Radius Cutter
End mill style integral shank indexable cutter body with positive geometry for more aggressive cutting action, proprietary pocket design provides unmatched repeatability and better finishes.
BE Shell Mill Convex Fillet Radius Cutter
Shell mill-style cutter bodies feature positive geometry for more aggressive cutting action. The proprietary pocket design ensures unmatched repeatability, minimizing runout and delivering superior surface finishes.
