Chamfering
Available in 9 chamfer angles, with integral shank or shell mill cutter bodies, featuring positive geometry for aggressive cutting and proprietary pocket designs for superior repeatability and chamfered finishes. The BE 45° Shell Mill Chamfer Cutter uses EM15/EM19 inserts for larger 45° chamfers with longer cutting length. The SP Square Insert Series offers square four-cornered inserts (.010"-.090" radii) for 45° chamfers, with positive geometry and reduced runout.
EM Chamfer Series
SP Chamfer Series
EM Chamfer Series Inserts
Know what size you need?
Get your part numbers in just
a few clicks.
Start Here
Step 1. To build your insert, choose a part number in red from either the EM15 or EM19 columns below.
EM15
EM19
SP Chamfer Series Inserts
Step 1. To build your insert, choose a part number in red from either the SP32 or SP42 columns below.
SP32
SP42
Step 2. Choose a grade in red below. The complete part number combines the first selection from the section above with your grade selection below.
Material Types and Substrate Information
BE Chamfer Cutter
The end mill-style integral shank indexable cutter body features positive geometry for more
aggressive cutting action. Its proprietary pocket design ensures unmatched repeatability,
delivering superior finishes on chamfered corners.
CMS 45° Top and Bottom Chamfer Cutter
Ideal for cutting a 45° on the top or bottom of a part, utilizing a square 4 cornered insert, and stocked with 5 different radii. The positive geometry allows for more aggressive cutting action, while the proprietary pocket design provides unmatched repeatability and reduced runout.

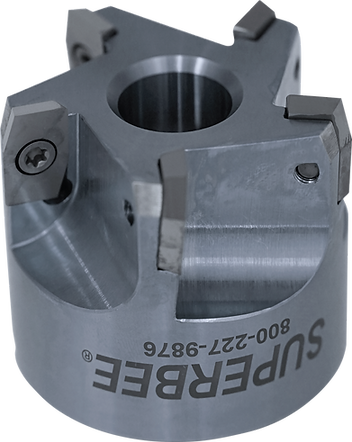

BE Shell Mill Chamfer Cutter
Shell mill-style indexable cutter body features positive geometry for more aggressive cutting action. Its proprietary pocket design ensures unmatched repeatability, delivering superior finishes on chamfered corners.
BE 45° Shell Mill Chamfer Cutter
The ideal choice for larger 45° chamfers.This cutter body holds a standard EM15 or EM19 insert at a 45° angle, delivering a longer length of cut than the BE Chamfer series.
