Indexable cutter bodies and inserts

Convex fillet radii range from .007" to .500", available in both fractional and metric sizes. Choose from

either integral shank or shell mill cutter bodies, each designed for optimal performance. Both feature

postive geometry for enhanced cutting speeds and a proprietary pocket design that ensures unmatched repeatability.

Concave corner rounding radii stocked between .010"- .250" including fractional and metric sizes.

​

Choose from either integral shank or shell mill cutter bodies, each designed for optimal performance.

Featuring positive geometry for enhanced cutting speeds and a proprietary pocket design that ensures unmatched repeatability.

The fastest way to cut large radii, our design segments the cut, reducing tool pressure and minimizing chatter for higher feed rates. Available in both fractional and metric sizes from .250" - 1.00".

End mill style indexable cutter body for 90° top and bottom corner rounding, cuts a radius on the top,

bottom, or both corners of your part. Positive geometry for more aggressive cutting action, and

proprietary pocket design provides unmatched repeatability, reducing runout and producing far better

finishes.

The 180° corner rounding series. All surfaces are precision ground for

excellent repeatability from insert to insert. Incredible time savings for all

applications requiring a 180 degree radius.

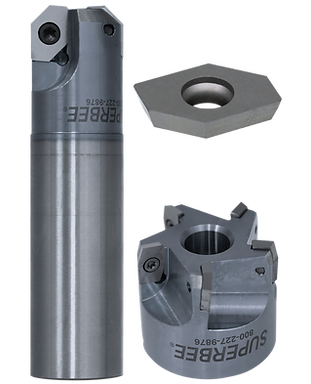

The end mill-style integral shank indexable cutter body features positive geometry for more

aggressive cutting action. Its proprietary pocket design ensures unmatched repeatability,

delivering superior finishes on chamfered corners.

​

Shell mill-style indexable

cutter body features positive

geometry for more aggressive

cutting action. Its proprietary

pocket design ensures

unmatched repeatability,

delivering superior finishes on

chamfered corners.

Designed for efficient counterboring, this cutter delivers a precise flat-bottom cut utilizing the SP Series square, four-cornered insert, available in five different radii.

Picatinny / NATO accessory rail indexable milling cutter. It is designed in accordance with the STANAG 4694 standardization agreement. Each surface is precision ground toensure exceptional repeatability from insert to insert, delivering incredible time and cost savings for any application requiring a Picatinny / NATO accessory rail.

Positive geometry for more aggressive cutting action. The proprietary pocket design provides unmatched repeatability reducing runout and producing far better finishes.

Indexable .750 X .750 square turning holder for fillet, corner round & angle. Fits all EM 19 inserts. Can be used with chamfers, convex and concave radii.
