FULL SERVICE SOLID CARBIDE CUTTING TOOL MANUFACTURER
SwiftCARB manufactures high-performance solid carbide tooling engineered for a wide range of machining applications. Our extensive product line offers a variety of length-of-cut options for each series, with end mills available in square end, ball end, and widely used corner radius sizes. We also offer a variety of specialty tools, including spot drills, chamfer mills, hemstitch cutters, and taper mills. Every tool is precision-ground to deliver consistent, optimal performance
tailored to your specific machining needs.
Every time.
Steel, Stainless, Cast Iron, Titanium, High Temp Alloys.
XD Series
The XD4 RampMill has an improved differential pitch / differential helix design that reduces harmonic
vibration and chatter. The XD4 can be used in applications from full slotting to light roughing, allowing for aggressive ramping and high material removal rates. Its patented end geometry and center through coolant option are ideal for pocketing applications in steel and exotic materials.
SwiftCARB Catalog, Page 1
P
P
P
M
M
K
N
N
S
S
H
XT Series
The XT Series RampMill allows aggressive ramping and high material removal rates when used with Controlled Radial Engagement / High Efficiency Milling cutter paths.
Its patented end geometry and center-through coolant feature make it perfect for periphery and pocketing operations in steel and exotic materials, especially in applications with open internal corners and shallow depths of cut.
SwiftCARB Catalog, Page 5
P
P
P
M
M
K
N
N
S
S
H
XM Series
The XM5 Series is a long lasting highly productive 5-flute designed for light roughing and finishing in steel and exotic materials. The XM5 is the best choice for long length and parts with tight internal corners. The XM7 is a great option for parts with open internal corners and periphery operations.
The XM9 is a great choice for short LOC in pockets with open corners and periphery operations. The XM11 is designed for light roughing and finishing in steel and exotic materials.
SwiftCARB Catalog, Page 10
P
P
P
M
M
K
N
N
S
S
H
SD Series
Our SD series is extensive, available in 4, 5, 6, and 7 flute configurations.
The SD Series have a differential pitch / differential helix design that reduces the harmonics that cause vibration and chatter. As a result, it can be used in steel, stainless and exotic metals for everything from full slotting to heavy roughing while still achieving a great finish. The SD is also a great choice for finishing in tight corners with a long LOC. The SD is highly versatile and delivers exceptional performance across a wide variety of applications.
SwiftCARB Catalog, Page 17
P
P
P
M
M
K
N
N
S
S
H
SH Series
The SH4 has a differential pitch / differential helix design that eliminates the harmonics that cause vibration and chatter; Engineered to remove the most material per HP available. The free cutting proprietary V-notch design breaks up sine waves and makes small, manageable chips. As a result, it can be used for everything from full slotting to heavy roughing in long reach applications.
SwiftCARB Catalog, Page 37
P
P
P
M
M
K
N
N
S
S
H
SM Series
The SM5 is a premium value line of 5-flute end mills designed for light roughing and finishing in steel
and exotic metals.
SwiftCARB Catalog, Page 40
P
P
P
M
M
K
N
N
S
S
H
SS Series
The SS3 is designed specifically for keyways and milling slots in stainless steel and exotic metals. It’s one of the most productive choices for full slotting and heavy roughing in steel and exotic metals when rigidity is an issue. It is also an excellent choice when full slotting diameters under .250”.
SwiftCARB Catalog, Page 42
P
P
P
M
M
K
N
N
S
S
H
GM Series
The GM2 and GM4 general purpose series has a standard geometry making it capable of cutting a wide range of materials. Its rigidity and design make it an excellent choice for general cutting from aluminum to steel, even some alloys.
SwiftCARB Catalog, Page 76
P
P
P
M
M
K
N
N
S
S
H
Aluminum Tooling
AC Series
The standard in aluminum cutting end mills, the AC2 is a great all around cutter that can be utilized from full slotting to finishing operations.
The AC3 is a great choice for light roughing to finishing in aluminum and non-ferrous materials. The 3-flute high helix, double rake design, creates a smooth cut leaving an excellent surface finish.
SwiftCARB Catalog, Page 44
P
P
P
M
M
K
N
N
S
S
H
AS Series
The AS3 is the all purpose tool for aluminum and other non-ferrous materials. Creating great finishes at high RPM’s, this multi-application tool can be used for everything from heavy roughing to finishing. The slow helix allows for use in tight corners and long lengths.
The AS3 Ball end mill is the all purpose tool for aluminum and other non-ferrous materials. The elliptical gash on the ball end creates great finishes at high RPM’s.
SwiftCARB Catalog, Page 54
P
P
P
M
M
K
N
N
S
S
H
AF Series
The AF4 finishes faster than a 3-flute and has a differential pitch / differential helix design that reduces the harmonics that cause vibration and chatter. The AF4 is an excellent choice for light to medium engagement, producing mirror finishes in tight corners.
The AF5 is the ultimate tool for fast, clean finishes in aluminum.
SwiftCARB Catalog, Page 62
P
P
P
M
M
K
N
N
S
S
H
AR Series
The AR3 is designed to remove the maximum material per HP available. The free cutting proprietary V-notch
design breaks up sine waves and makes small, manageable chips. Center cutting geometry for plunging, the AR3 is also available with large corner radii.
SwiftCARB Catalog, Page 68
P
P
P
M
M
K
N
N
S
S
H

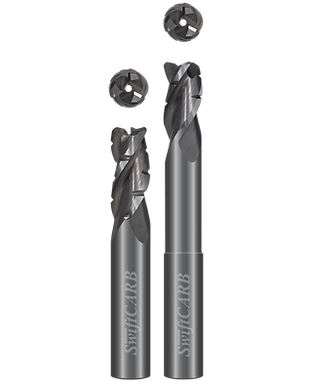

AV Series
The AV3 RampMill is designed for use with Controlled Radial Engagement / High Efficiency Milling cutter paths. The AV3 achieves a much higher material removal rate than standard carbide end mills. Available with center through coolant for superior chip evacuation and excellent tool life. The non-center cutting end
design allows ramping at 5 to 9 times greater ramp angles than a standard end mill. The RampMill can enter material by helically ramping holes nearly as fast as they can be drilled.
SwiftCARB Catalog, Page 72
P
P
P
M
M
K
N
N
S
S
H
GM Series
The GM2 general purpose series has a standard geometry making it capable of cutting a wide range of materials. Its rigidity and design make it an excellent choice for general cutting from aluminum to steel, even some alloys.
The GM4 general purpose series has standard geometry making it capable of cutting a wide range of materials. Its rigidity and design make it an excellent choice for general cutting from aluminum to steel, even some alloys.
SwiftCARB Catalog, Page 76
P
P
P
M
M
K
N
N
S
S
H
Taper Mills, 3D Contour Cutters, Spot Drills, Chamfer Mills and Corner Rounders.
TM and TMB Taper Mills
The TM3 has the most common draft angles available.
Constant helix provides solid cutting action and creates smooth wall finishes.
Moderate helix produces smooth wall finishes and works very well for general cuts in most materials.
Manufacturing tolerances far above industry standards.
Premium carbide blanks and eccentric relief provide superior strength and increased wear resistance.
SwiftCARB Catalog, Page 86
P
P
P
M
M
K
N
N
S
S
H
HMS 3D Contour Cutter
One of the best designed cutting tools for machining three dimensional contour shapes, the HMS series features oversized radii to allow for a larger step over that will produce a smaller scallop height compared to a standard ball end mill. The HMS series has an elliptical gash starting past center that follows the helix of the tool for the length of the radii. This allows the HMS to cut all the way to center and gives the radius shear for smooth cutting and excellent finishes.
SwiftCARB Catalog, Page 88
P
P
P
M
M
K
N
N
S
S
H
DNC Spot Drill
Proprietary S-point and heavy edge prep give smooth results.
Premium carbide blanks provide superior strength and
increased wear resistance.
Manufacturing tolerances far above industry standards.
Available with MDC coating for unmatched performance
and tool life.
SwiftCARB Catalog, Page 90
P
P
P
M
M
K
N
N
S
S
H

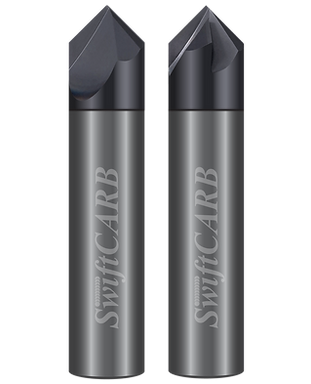

2 and 4-Flute Chamfer
2-flute for larger chip loads in aluminum and non-ferrous
materials, 4-flute for faster speeds.
Positive flute geometry allows for more aggressive feed
rates and cleaner finishes.
Manufacturing tolerances far above industry standards.
Premium carbide blanks provide superior strength and
increased wear resistance.
Available with MDC coating for unmatched performance
and tool life.
SwiftCARB Catalog, Page 92
P
P
P
M
M
K
N
N
S
S
H
3 and 5-Flute HP Chamfer
3-flute design for high performance chamfering of aluminum and non-ferrous materials.
5-flute geometry for high performance chamfering of
stainless, titanium, and exotic metals.
Premium carbide blanks provide superior strength and increased wear resistance.
Helical flutes with positive high shear design for reduced cutting forces producing better finishes and
increased tool life.
SwiftCARB Catalog, Page 93
P
P
P
M
M
K
N
N
S
S
H
CRE Corner Rounder
Top and bottom washout eliminates mismatch and leaves a superior finish.
Premium carbide blanks provide superior strength and increased wear resistance.
Available with MDC coating for unmatched performance and tool life.
Manufacturing tolerances far above industry standards.
SwiftCARB Catalog, Page 95
P
P
P
M
M
K
N
N
S
S
H
